AgZone™4 ML1000-4X Controller Package (4018041)
Enhance the Capabilities of your PowerCore® ML1000-4X Controller
The AgZone™4 ML1000-4X Controller Package combines three components to bring you a turnkey solution for operating MurCal’s proprietary AgZone™4 engine control system.

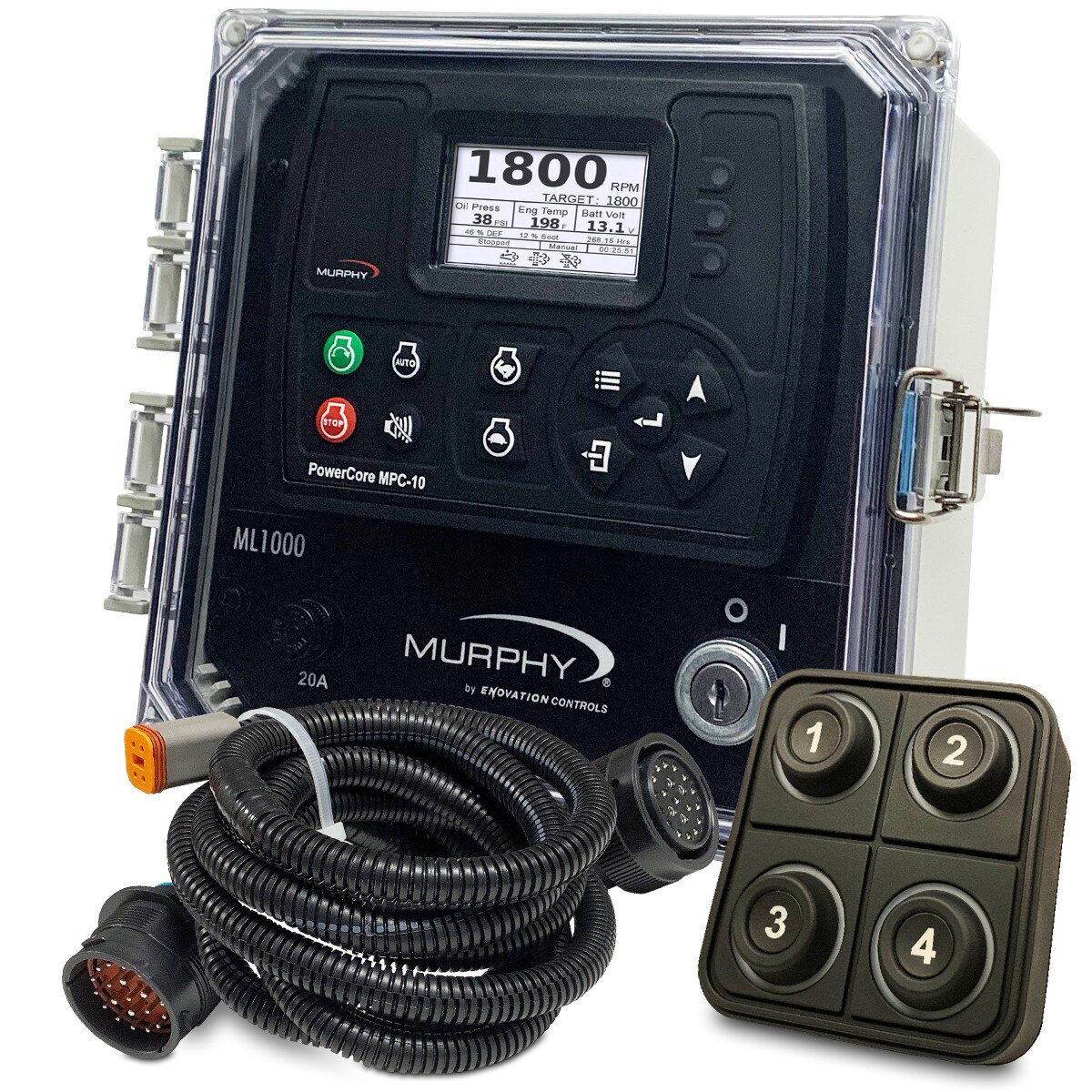

The ML1000-4X Controller Package includes:
• One (1) AgZone™4 ML1000-4X Engine Control Panel (4018034), encased in a NEMA 4X enclosure, configured with the AgZone™ software program
• One (1) AgZone™4 Four Button Keypad (6518014)
• One (1) AgZone™4 Power/CAN Adapter Harness (6519015)
Murphy’s ML1000-4X Panel, engineered and built by Enovation Controls Industrial Panel Division, is a superior panel offering which includes the powerful, yet simple-to-configure PowerCore® MPC-10 Controller. The MPC-10 is a general, all-purpose manual/auto start and manual/auto throttling engine controller designed with rental applications in mind. The controller is purposed primarily for applications where a wide array of inputs and outputs are not required. The MPC-10 supports J1939 CAN protocols for electronically governed engines as well as analog sensors on mechanical engines for fault and safety shutdowns.
The AgZone™4 Four Button Keypad is an accessory to be used with specific controllers, including the ML1000-4X. It comes with a special configuration that is installed in the controller which allows you to easily select between four (4) different irrigation mode presets. The keypad will only work when combined with an engine controller and adapter harness from one of our AgZone™4 Controller Packages.
The AgZone™4 Power/CAN Adapter Harness is 84” (7 foot / 2.13 meter) in length, and includes Deutsch Pin Plugs, Receptacles, and Wedgelocks, combined with Omni Cable and 18GA wire encased in High Temperature Split Loom. The Power/CAN Adapter Harness is necessary to connect MurCal's AgZone™4 Four Button Keypad (6518014) to your Murphy PowerCore® ML1000-4X engine control panel to power the AgZone keypad buttons and provide communication between the controller and the keypad buttons.
Read our article on how MurCal Makes Life Easier on the farm with the help of the ML1000-4X withAgZone™4 HERE!
More information on each component of this Controller package can be found at the links below:
Literature
- ML1000-4X Sales Bulletin
- ML1000-4X Wiring Diagram
- AgZone™4 Automatic Four Zone Keypad Sales Bulletin
- AgZone™4 Power/CAN Adapter Harness Bulletin
