AgZone™4 ML2000-R2-4X Controller Package (4018042)

AgZone™4 ML2000-R2-4X Controller Package (4018042)


Enhance the Capabilities of your PowerCore® ML2000-R2-4X Controller


The AgZone™4 ML2000-R2-4X Controller Package combines three components to bring you a turnkey solution for operating MurCal’s proprietary AgZone™4 engine control system.

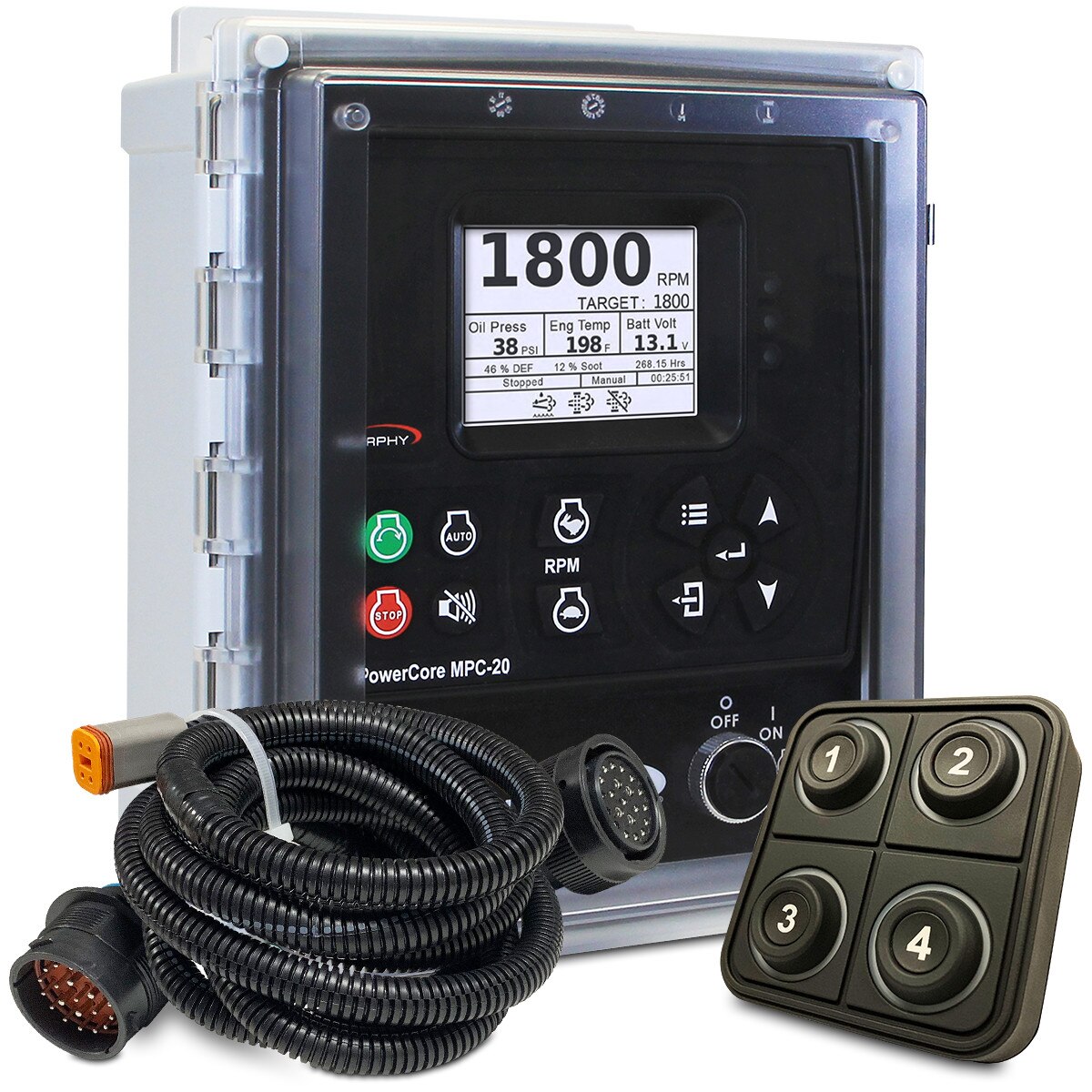

The ML2000-R2-4X Controller Package includes:

   •  One (1) AgZone™4 ML2000-R2-4X Engine Control Panel (4018033), encased in a NEMA 4X enclosure
   •  One (1) AgZone™4 Four Button Keypad (6518014)
   •  One (1) AgZone™4 Power/CAN Adapter Harness (6519015)

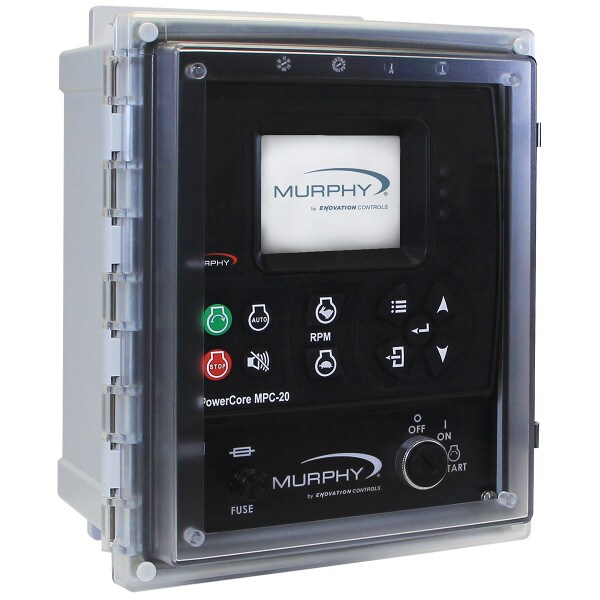

Murphy’s ML2000-R2-4X Panel, engineered and built by Enovation Controls Industrial Panel Division, is a superior panel offering which includes the powerful, yet simple-to-configure PowerCore® MPC-20-R2 Controller, encased in a NEMA 4X enclosure. This controller offers manual or automatic control whether it's starting/stopping, throttling, or both. The flexibility of the MPC-20-R2 controller allows for the same control panel to be used across many applications, providing the operator familiarity with the controller and control panel in any application. The ML2000-R2-4X utilizes industry standard Deutsch connectors and is compatible for use on the simplest mechanical engine to the most advanced, fully electronic Tier 4 engines supporting J1939 CAN communications.

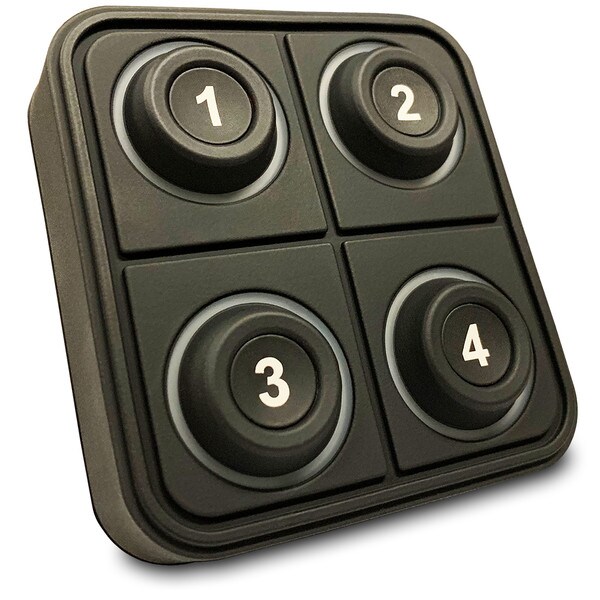

The AgZone™4 Four Button Keypad is an accessory to be used with specific controllers, including the ML2000-R2-4X Engine Control Panel. It comes with a special configuration that is installed in the controller which allows you to easily select between four (4) different irrigation mode presets. The keypad will only work when combined with an engine controller and adapter harness from one of our AgZone™4 Controller Packages.

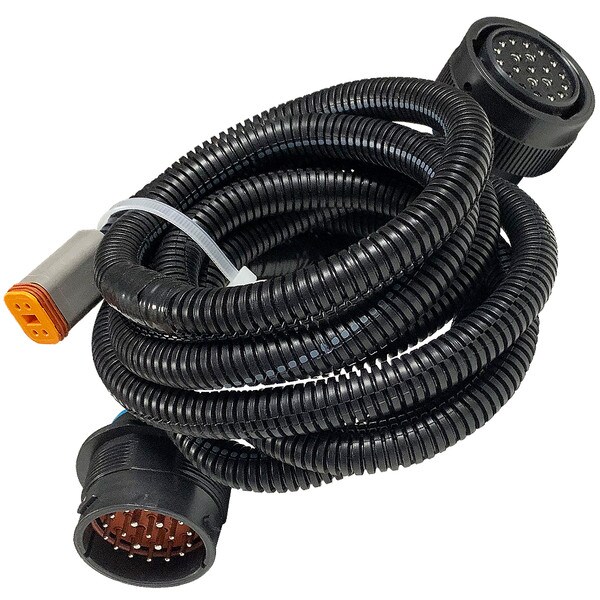

The AgZone™4 Power/CAN Adapter Harness is 84” (7 foot / 2.13 meter) in length, and includes Deutsch Pin Plugs, Receptacles, and Wedgelocks, combined with Omni Cable and 18GA wire encased in High Temperature Split Loom. The Power/CAN Adapter Harness is necessary to connect MurCal's AgZone™4 Four Button Keypad (6518014) to your Murphy PowerCore® ML2000-R2-4X engine control panel to power the AgZone keypad buttons and provide communication between the controller and the keypad buttons.

Read our article on how MurCal Makes Life Easier on the farm with the help of the TML2000-R2-4X withAgZone™4 HERE!

More information on each component of this Controller package can be found at the links below:

Literature


1. ML2000-R2-4X Sales Bulletin
2. ML2000-R2-4X Wiring Diagram
3. AgZone™4 Automatic Four Zone Keypad Sales Bulletin
4. AgZone™4 Power/CAN Adapter Harness Bulletin
