AgZone™4 TEC-10 Controller Package (4018044)
Enhance the Capabilities of your PowerCore® TEC-10 Controller
The AgZone™4 TEC-10 Controller Package combines three components to bring you a turnkey solution for operating MurCal’s proprietary AgZone™4 engine control system.

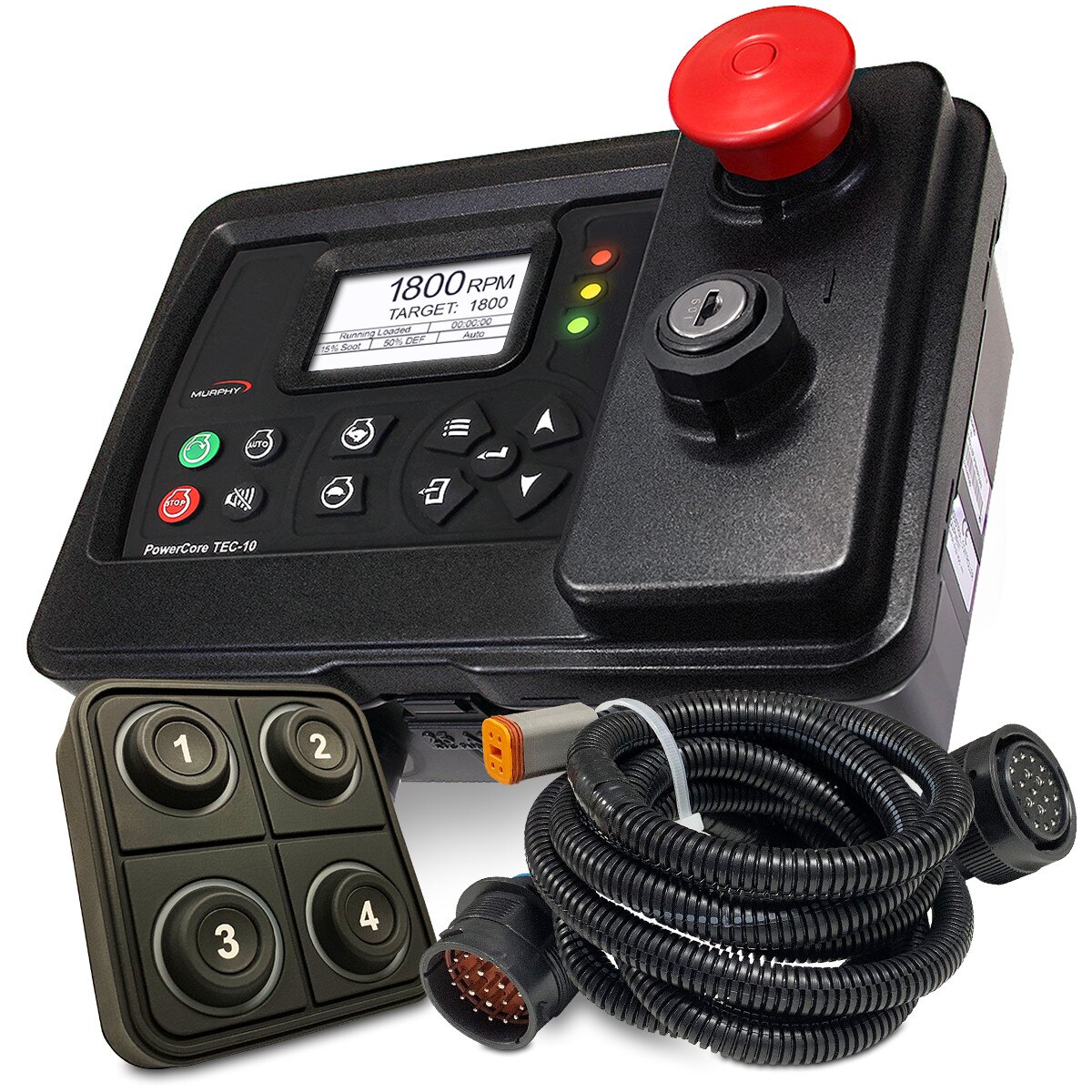

The TEC-10 Controller Package includes:
• One (1) AgZone™4 TEC-10 Engine Control Panel (4018035) configured with the AgZone™ software program
• One (1) AgZone™4 Four Button Keypad (6518014)
• One (1) AgZone™4 Power/CAN Adapter Harness (6519015)
Murphy's PowerCore® TEC-10 panel provides full control of your engine including auto start/stop, auto throttling and display of both engine parameters and critical faults from the engine/application. The TEC-10 is built around the powerful, yet simple-to-configure PowerCore® MPC-10 Controller, an all-purpose manual/auto start and manual/auto throttling engine controller designed with rental applications in mind. The TEC-10 supports J1939 CAN protocols for electronically governed engines as well as analog sensors on mechanical engines for fault and safety warnings/shutdowns. The control panel features molded, industry-standard connectors mating with Deutsch HDP series connectors and is compatible for use on the simplest mechanical engine to the most advanced, fully electronic Tier 4 engines.
The AgZone™4 Four Button Keypad is an accessory to be used with specific controllers, including the TEC-10. It comes with a special configuration that is installed in the controller which allows you to easily select between four (4) different irrigation mode presets. The keypad will only work when combined with an engine controller and adapter harness from one of our AgZone™4 Controller Packages.
The AgZone™4 Power/CAN Adapter Harness is 84” (7 foot / 2.13 meter) in length, and includes Deutsch Pin Plugs, Receptacles, and Wedgelocks, combined with Omni Cable and 18GA wire encased in High Temperature Split Loom. The Power/CAN Adapter Harness is necessary to connect MurCal's AgZone™4 Four Button Keypad (6518014) to your Murphy PowerCore® TEC-10 engine control panel to power the AgZone keypad buttons and provide communication between the controller and the keypad buttons.
Read our article on how MurCal Makes Life Easier on the farm with the help of the TEC-10 withAgZone™4 HERE!
More information on each component of this Controller package can be found at the links below:
Literature
- TEC-10 Sales Bulletin: PowerCore® TEC-10
- TEC-10 Pin Specifications
- AgZone™4 Automatic Four Zone Keypad Sales Bulletin
- AgZone™4 Power/CAN Adapter Harness Bulletin
