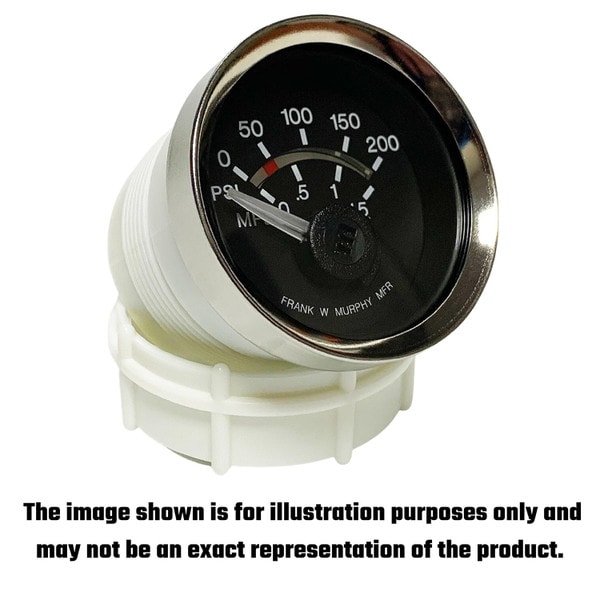

EGS21P-200-12 Electric Pressure Swichgage® (05702421)
EGS21P-200-12: Engine Pressure Swichgage®; 200 psi max; 12 VDC (05702421)
The EGS21P-200-12 is a 12VDC Electric Pressure Swichgage®. This instrument has a pressure range of 0-200 psi, a stainless steel bezel finish, and an adjustable set point PowerHall® Effect switch output for operating alarms or equipment shutdown. The trip point is adjustable over 90% of the scale and has a set point indicator visible from the gage face. This model takes the electric gage to new heights with proven state of the art technology and reliability. Utilizing our proven EG Air Core movement design, the EGS21P-200-12 offers technological improvements in overall operation, lighting, accuracy in reading, wiring and installation. This rugged gage is environmentally sealed and exceeds the rigid SAE J1810 standard for reliable operation under tough off-road and power unit environments. Corrosion-resistant materials are used throughout, making the instrument highly desirable for marine and other environmentally sensitive applications. Soft, non-glare dial and pointer illumination is provided by a "cold light" LED, and when powered the white lettering and clear pointer become soft red. Mirror band eliminates parallax reading error when the pointer and its reflection are aligned.
Literature:
MurCal is an Authorized Distributor of Murphy by Enovation products.
MurCal provides experienced application and product support, before and after the sale.
