WD300LV-E4 (30700015): Swichgage® Shutdown Panel
WD300LV-E4: Swichgage® Shutdown Panel; Less SV Fuel Valve, 4 foot capillary temperature gage (standard). (30700015)

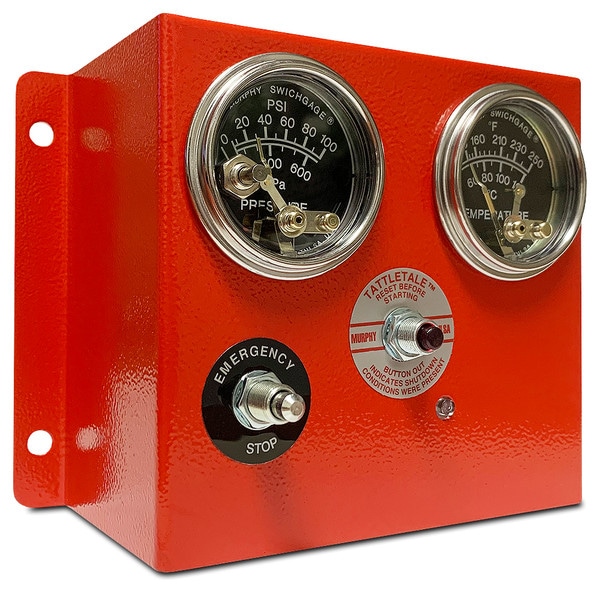

The WD300LV Swichgage® Shutdown Panel is the ideal control solution for a wide variety of diesel engines that have the fuel shut-off solenoid built into the injection pump.
The panel includes a Low Lube Oil Pressure Swichgage®, a High Coolant/Temperature Swichgage®, a 117PH Magnetic Switch and an emergency stop push button.
The WD300LV does not include an SV Series Solenoid Fuel Shutoff Valve.
The panel is a universal design, enclosed on the top, bottom and both sides.
The back of the panel is open and flanged mounting brackets are on both sides.
20P Oil Pressure Swichgage®: 0-100 psi (0-689 kPa) [0-6.89 bar]; 1/8 NPT process connection.
20T Temperature Swichgage®: 130-250°F (54-121°C); 48 inch (1.2 m) capillary; 1/2-14 NPT process connection.
117PH Magnetic Switch
PB128S Emergency stop push button
