EGIS Charging Relay (7610B)

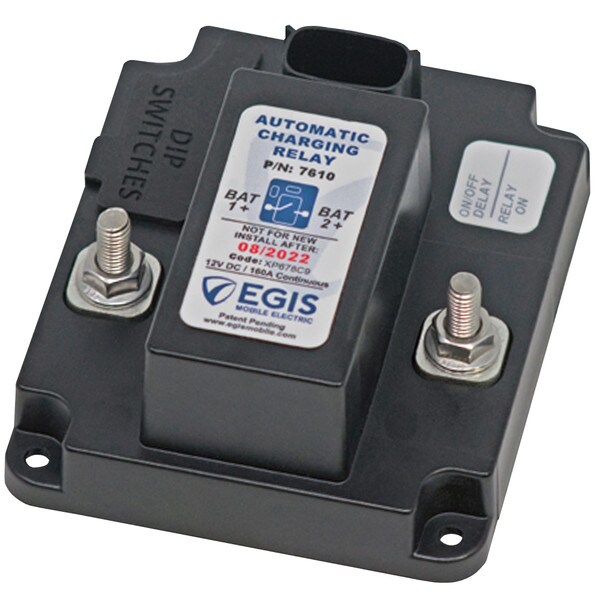

EGIS Automatic Charging Relay Plus - 160 A / 12 V (7610B)
Features:
• Eliminates Dead Start Batteries
– by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Simple & Robust Installation:
- Integrated sealed plug eliminates corrosion, includes Deutsch/ Amphenol DTM connector harness.
• Additional Low Amp Output
- can be used to report device status remotely.
• Ultra Low Off-State Current:
- Compare to typical ACRs (7-10 mA) vs 7610 ACR @ 1.3 mA.
• Bullet-proof Construction:
-Sealed unit, high temperature materials allow mounting anywhere. Integrated thermal overload shutdown protection.
• Adjustable On and Off Voltage Settings:
– allow sharing start battery energy for auxiliary battery while ensuring engine starting ability; or charging start battery before sharing with auxiliary.
• Dual Start/Engine Isolation:
–input option for protecting sensitive electronics or isolating multiple charging sources to optimize overall system performance.
• Start Assist:
– input option to ensure maximum cranking amps available.
• 4 Year Leading Warranty
Additional Features:
• Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.
• Supports Multiple Engines or Independent Charge Systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.
• Protects Electrical System Cascading Faults with optional lock-out from closing if one terminal is connected to a battery with a shorted cell.
